PMT-S103 Side-On Photomultiplier Tube – 1 1/8", 9-Stage, Ultra-Low Dark Current 3 nA, 165–870 nm
PMT-S103 Side-On Photomultiplier Tube – 1 1/8", 9-Stage, Ultra-Low Dark Current 3 nA, 165–870 nm
Quantity
🔬 For Research Use Only
This product is designed for laboratory research use only. Not for clinical or diagnostic applications.

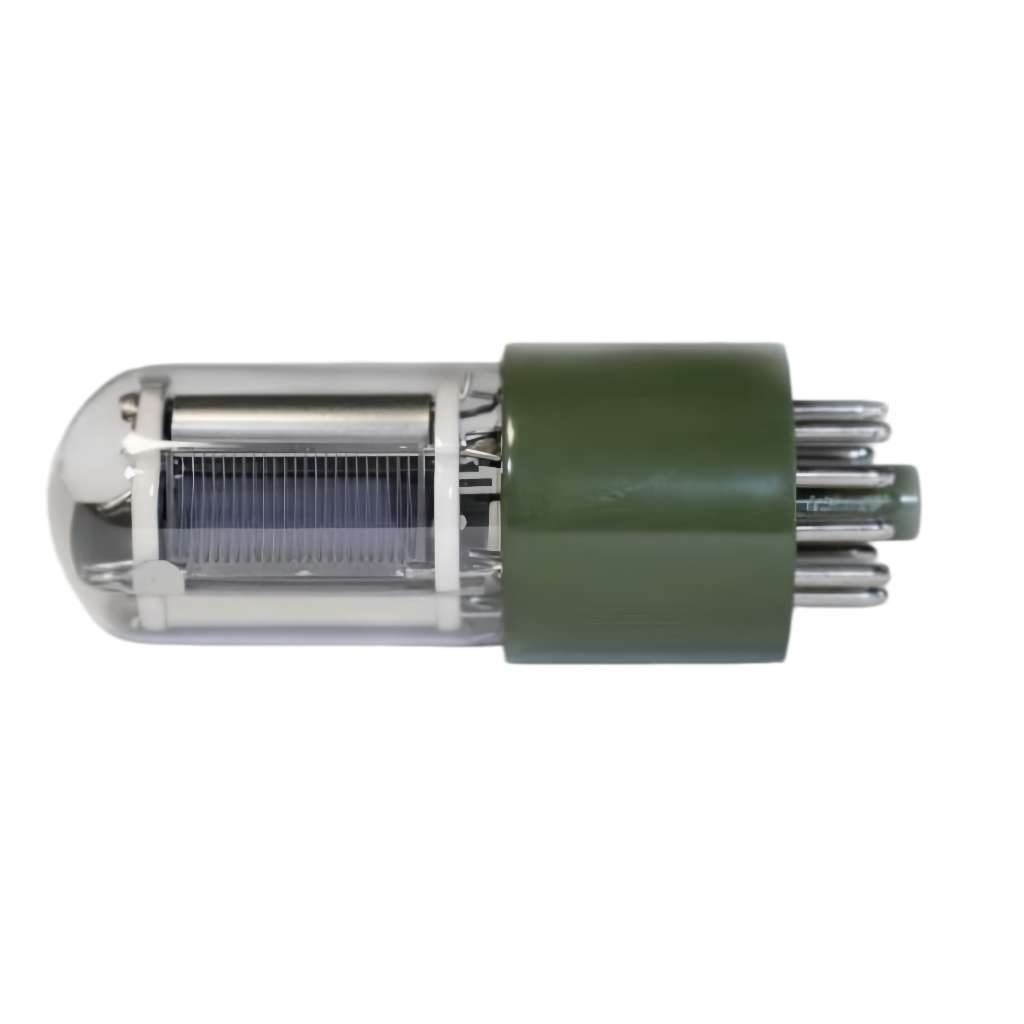

PMT-S103 Side-On Photomultiplier Tube
The PMT-S103 is a high-performance side-on photomultiplier tube featuring a 9-stage circular-focused dynode structure. With a quartz glass window, multi-alkali photocathode, and ultra-low dark current (3 nA), it delivers exceptional sensitivity for photon counting and ultra-low-light-level detection applications.
✅ Why Choose Meticulab for Your PMT Needs?
- Fast Delivery – Popular models in stock, ready to ship within 24-48 hours
- Low MOQ – 1 piece is welcome (perfect for R&D and prototyping)
- Technical Support – Engineers available to help with selection and application questions
- Competitive Pricing – Direct from Asian manufacturing partners
🔧 Key Specifications
| Parameter | Value |
|---|---|
| Spectral Response | 165 – 870 nm |
| Window Material | Quartz glass |
| Photocathode Material | Multi-alkali |
| Cathode Area | 8 × 24 mm² |
| Dynode Structure | Circular-focused (9-stage) |
| Gain | 3.3 × 10⁶ |
| Anode Dark Current (after 30min) | ≤ 3 nA |
| Rise Time | 2.2 ns |
| Transit Time Spread (TTS) | 1.2 ns |
| Average Anode Current | 0.1 mA |
| Operating Temperature | -30°C to +50°C |
| Storage Temperature | -50°C to +50°C |
📋 Typical Applications
- Photon counting
- Single-photon detection
- Fluorescence spectroscopy
- Luminescence measurement
- Biomedical analysis
- Environmental monitoring
No minimum order quantity. Whether you need 1 piece for testing or 100 pieces for production, we can accommodate your needs.
