PMT Selection Guide: Side-On vs. Head-On – Which One Fits Your Application?

Photomultiplier tubes (PMTs) are among the most sensitive detectors for low-light-level measurements. From spectroscopy and fluorescence to scintillation counting and high-energy physics, PMTs play a critical role in countless scientific and industrial applications.

One of the most fundamental decisions when selecting a PMT is choosing between side-on and head-on configurations. Each design offers distinct advantages depending on your application requirements.

This guide will help you understand the differences and make an informed decision.

🔬 1. Understanding PMT Configurations

✅ Side-On PMTs

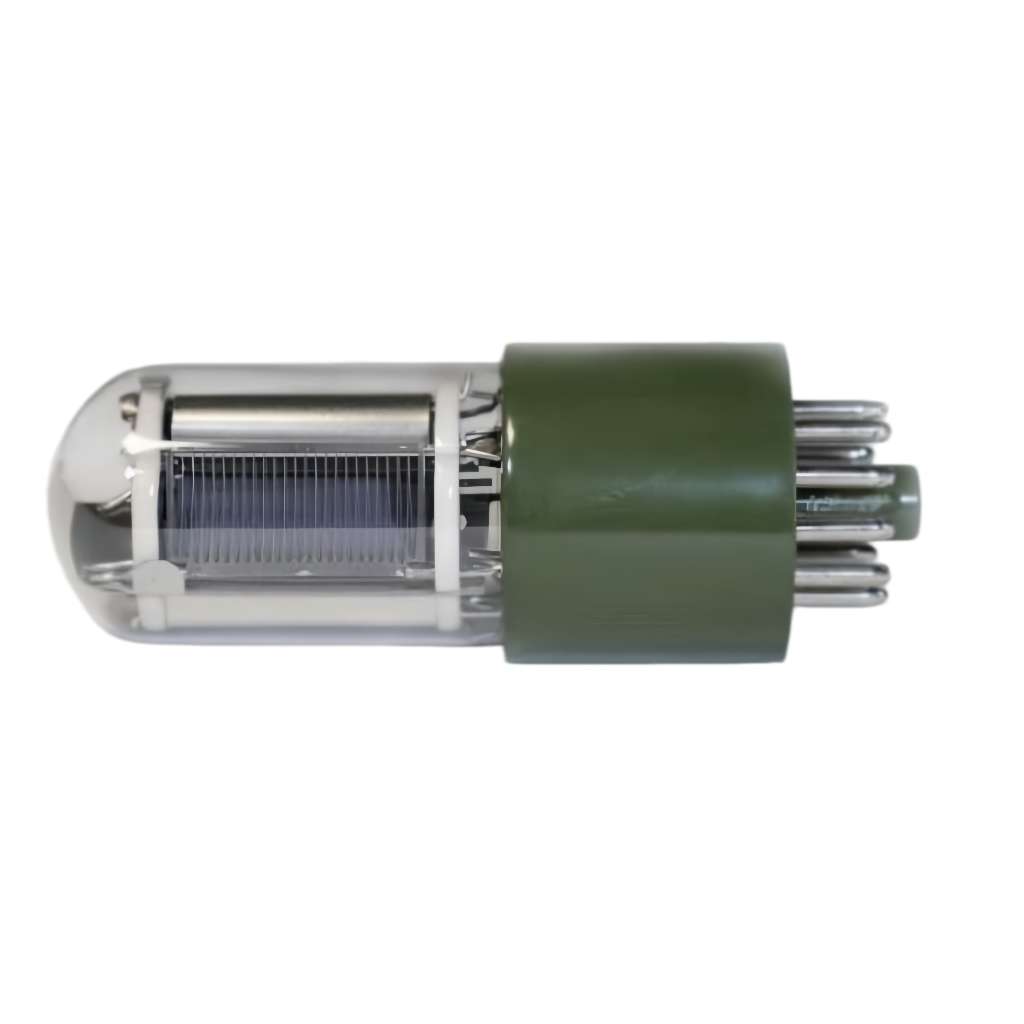

In side-on PMTs, the photocathode is deposited on a metal substrate and light enters through a window on the side of the tube. The photoelectrons are reflected off the photocathode and directed into the dynode chain.

Key characteristics of side-on PMTs:

• Reflective photocathode – Light passes through the window, strikes the photocathode, and photoelectrons are emitted from the same side
• Higher quantum efficiency – Especially in the UV-VIS range (up to 25-30%)
• Compact design – Typically smaller and more economical
• Wide spectral range – Available with multi-alkali photocathodes for 165-900nm coverage
• Common sizes – 1 1/8" (28mm) diameter, 8×24mm cathode area

When to choose side-on PMTs:

• Spectroscopy and fluorescence measurements
• UV-VIS light detection (165-900nm)
• Compact instrument designs
• Applications requiring high sensitivity in the UV range
• Cost-sensitive applications

Typical side-on models:

• PMT-S101 – 165-900nm, multi-alkali, gain 1×10⁷, ideal for spectroscopy
• PMT-S102 – 165-650nm, bialkali, gain 8×10⁶, for UV-VIS applications
• PMT-S103 – 165-870nm, ultra-low dark current (3 nA), for photon counting

✅ Head-On PMTs

In head-on PMTs, the photocathode is deposited on the inside of the end window as a semi-transparent layer. Light enters through the window, passes through the photocathode, and photoelectrons are emitted from the opposite side into the dynode chain.

Key characteristics of head-on PMTs:

• Semi-transparent photocathode – Light passes through the photocathode, and photoelectrons are emitted from the opposite side
• Larger active area – Available in diameters from 10mm to 150mm or more
• Better uniformity – More uniform response across the active area
• Faster response times – Often optimized for timing applications
• Common sizes – 1/2" (13mm), 1" (25mm), 2" (46mm), 3" (70mm), and larger

When to choose head-on PMTs:

• Scintillation counting and radiation detection
• High-energy physics experiments
• Medical imaging and PET scanners
• Applications requiring large active areas
• Photon counting with low dark counts
• Timing applications (fast rise time)

Typical head-on models:

• PMT-H201 – 2", 290-650nm, gain 7×10⁶, fast response (1.9ns), for scintillation counting
• PMT-H204 – 2", 290-650nm, high gain (2.5×10⁷), for high-gain applications
• PMT-H301 – 3", 290-650nm, low dark count, for photon counting and high-energy physics

📊 2. Key Performance Parameters

Parameter	Description	Why It Matters
Spectral Response	The wavelength range over which the PMT is sensitive	Must match the emission spectrum of your sample or scintillator
Quantum Efficiency (QE)	The percentage of incident photons that produce photoelectrons	Higher QE means better sensitivity and lower detection limits
Gain	The multiplication factor of the dynode chain (typically 10⁶ to 10⁷)	Higher gain means larger output signals for the same light input
Dark Current / Dark Count	The output signal in the absence of light	Lower dark current enables detection of weaker signals
Rise Time	The time required for the output pulse to rise from 10% to 90% of its peak	Faster rise time enables better timing resolution
Active Area	The photosensitive area of the photocathode	Larger area collects more light but may increase dark count

📋 3. Photocathode Materials

Material	Spectral Range	Peak QE	Applications
Multi-alkali (S-20)	165-900nm	~15-20%	Broadband spectroscopy, UV-VIS-NIR
Bialkali (K₂CsSb)	290-650nm	~25-30%	Scintillation counting, fluorescence
Super bialkali	290-650nm	~35-40%	High-sensitivity applications
GaAs (III-V)	300-850nm	~40-50%	Ultra-high sensitivity, photon counting

📊 4. Quick Selection Guide

Application	Configuration	Recommended Model	Key Specifications
UV-VIS spectroscopy	Side-on	PMT-S101	165-900nm, gain 1×10⁷
Fluorescence detection	Side-on	PMT-S102	165-650nm, low dark current
Photon counting	Side-on	PMT-S103	Ultra-low dark current (3 nA)
Scintillation counting	Head-on	PMT-H201	2", fast response, 1.9ns rise time
High-gain applications	Head-on	PMT-H204	2", gain 2.5×10⁷
High-energy physics	Head-on	PMT-H301	3", low dark count, photon counting
