How to Choose the Right Sampling Needle for Your Laboratory Analyzer
Aktie
Selecting the right sampling needle or reagent needle is essential for ensuring stable performance, accurate liquid handling, and reliable long-term operation of automated laboratory analyzers.
Although these components are small, they have a significant impact on sample integrity, carryover prevention, and system durability.
This article summarizes the key factors to consider when choosing sampling needles, including material selection, machining precision, compatibility, and OEM customization possibilities for laboratory analyzers.
(All content refers strictly to laboratory instrument components, not items intended for human or clinical use.)
1. The Function of Sampling Needles in Laboratory Analyzers
Sampling and reagent needles are responsible for:
Aspirating and dispensing sample or reagent volumes
Reducing carryover through smooth internal surfaces
Avoiding contamination
Maintaining consistent flow rates
Protecting internal mechanisms from mechanical interference
Because of this, the material, surface finish, straightness, and tolerances directly affect instrument performance.
2. Material Comparison: Stainless Steel vs. Ceramic Needles
Different analyzers and reagent types require different materials. Below is a practical comparison to support engineers and sourcing teams.

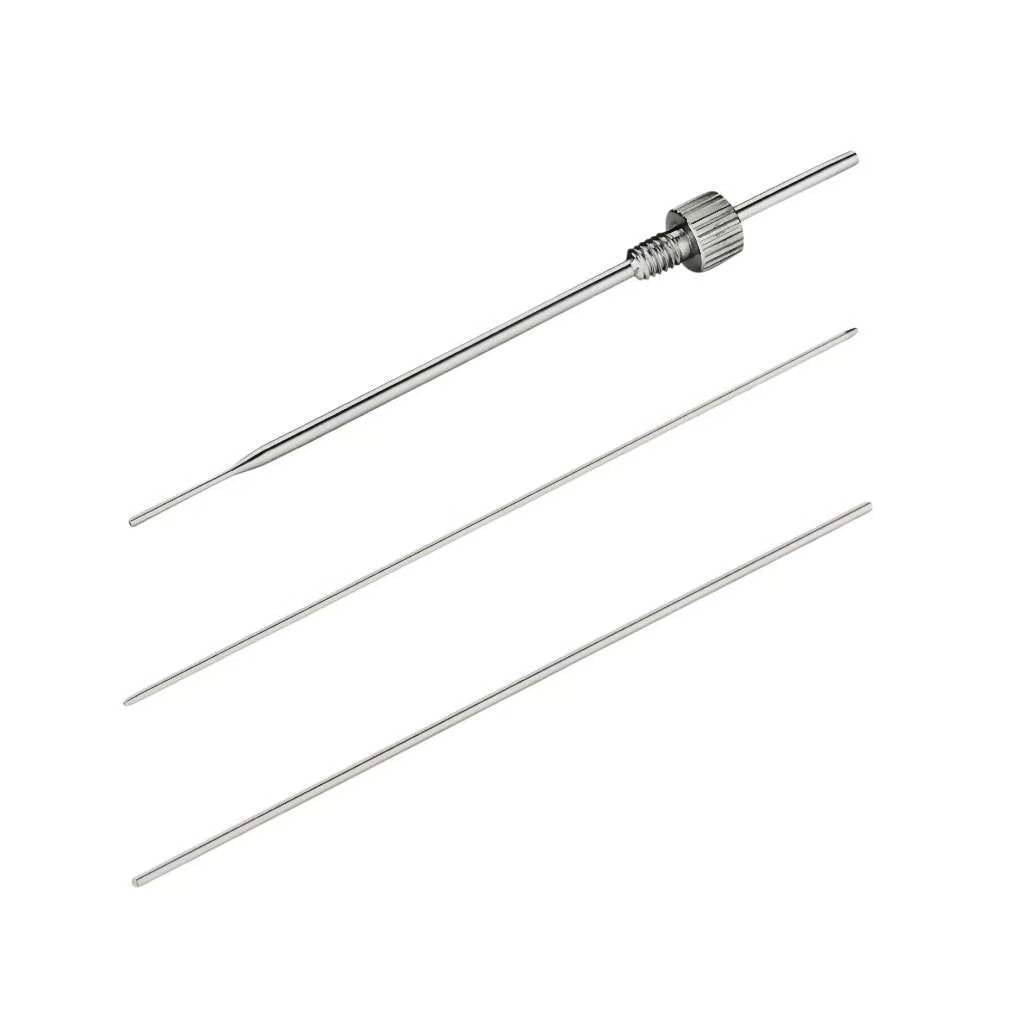

Stainless Steel Needles (SUS304 / SUS316L)
Advantages:
High mechanical strength
Excellent corrosion resistance to common reagents
Suitable for most laboratory analyzers
Supports tight tolerances
Cost-effective
Widely compatible with OEM instrument platforms
Typical Applications:
General sampling needles
Reagent aspiration needles
Washing and mixing needles
Best for: General-purpose analyzers, OEM replacement parts, custom modifications.
Ceramic Needles (Alumina / Zirconia)
Advantages:
Extremely high hardness
Very long wear life
Excellent chemical resistance, even to aggressive reagents
Precision inner bore machining for ultra-low carryover
Limitations:
Less impact-resistant
Not suitable for all mounting structures
Higher cost
Limited flexibility for tip geometry modifications
Best for: High-end analyzers, applications requiring ultra-low contamination or compatibility with harsh reagents.
3. Why Machining Precision Matters
Regardless of the material, precision determines performance.
Key parameters include:
Outer Surface Roughness (Ra): ≤ 0.1 μm — Reduces external friction & contamination
Inner Surface Roughness: ≤ 0.06 μm — Minimizes carryover
Straightness: ≤ 0.05 mm — Ensures alignment with probe arms
Dimensional Tolerance: ±0.01 mm — Maintains flow accuracy
Coating Options: PTFE / Hydrophobic — Prevents sample residue
A well-manufactured needle supports consistent aspiration volume, stable flow paths, and longer instrument life.
4. How to Match the Needle with Your Analyzer Model
Different analyzer systems use different:
Probe arm dimensions
Mounting mechanisms
Flow path diameters
Reagent formulations
Aspiration volumes
Choosing the right needle requires attention to these aspects:
Inner and outer diameter (ID/OD): Controlled based on your liquid viscosity and aspiration volume.
Length and mounting style: Matched to the geometry of your probe arm.
Tip geometry: Flat, beveled, cone-shaped, side-hole, etc., depending on sample cup shape, reagent container design, and required penetration depth.
Material compatibility: For example, chlorine-containing reagents may require 316L instead of 304.
Coating requirements: Hydrophobic coatings help reduce residual droplets.
