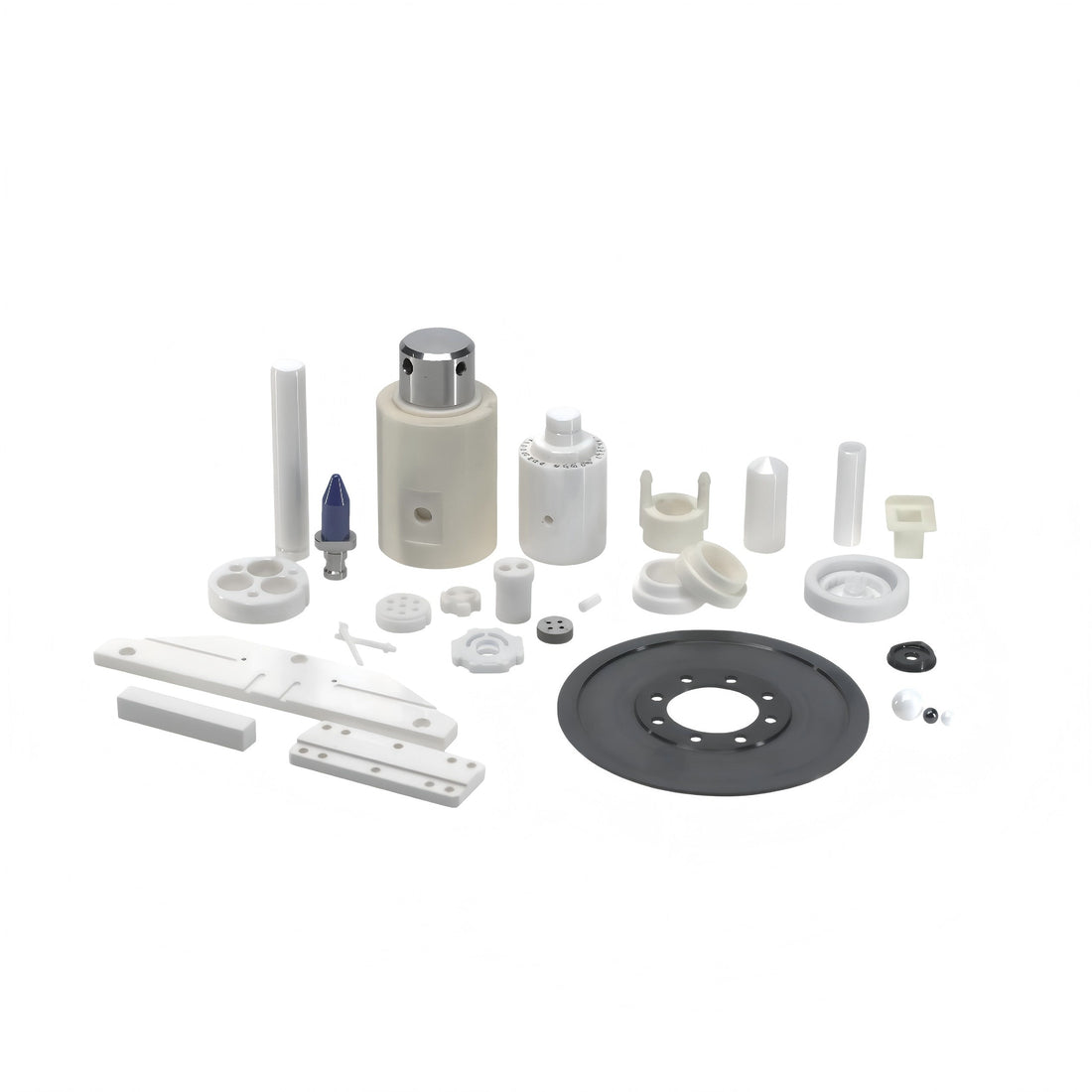

Precision Ceramic Components: Zirconia vs. Alumina – Which Material Should You Choose?

Precision ceramic components are essential in demanding applications where metals and plastics fall short. From medical devices and semiconductor equipment to aerospace instruments and industrial machinery, ceramics offer unique combinations of hardness, wear resistance, thermal stability, and chemical inertness.

Among engineering ceramics, zirconia (ZrO₂) and alumina (Al₂O₃) are the most widely used. But how do you choose between them for your specific application?

This guide will help you understand the differences and make an informed decision.

🔬 1. Understanding Engineering Ceramics

✅ Zirconia (ZrO₂) – Yttria-Stabilized Tetragonal Zirconia Polycrystal (Y-TZP)

Zirconia is the toughest engineering ceramic, offering a unique combination of strength, toughness, and wear resistance.

Key characteristics:

• Hardness – 11-12 GPa (Vickers), Mohs 8.5
• Fracture toughness – 6-10 MPa·m¹/² (highest among ceramics)
• Flexural strength – 900-1200 MPa
• Compressive strength – >2000 MPa
• Thermal conductivity – 2-3 W/m·K (low, good insulator)
• Thermal expansion – 10-11 ×10⁻⁶/K (close to metals)
• Maximum use temperature – 1000°C (in air)
• Color – White, off-white, or black (with additives)

When to choose zirconia:

• Applications requiring high toughness and impact resistance
• Wear parts in abrasive environments
• Components that must withstand mechanical shock
• Medical devices and implants (biocompatible)
• Applications requiring thermal expansion matching metals
• Precision components with complex geometries

Typical applications:

• Ferrule and sleeves for fiber optics
• Pistons and plungers for pumps
• Bearings and bushings
• Cutting blades and knives
• Medical instruments and implants
• Wear-resistant components in industrial machinery

✅ Alumina (Al₂O₃) – Aluminum Oxide

Alumina is the most widely used engineering ceramic, offering an excellent balance of properties at an economical price.

Key characteristics:

• Hardness – 15-18 GPa (Vickers), Mohs 9
• Fracture toughness – 3-5 MPa·m¹/² (moderate)
• Flexural strength – 300-500 MPa (99.5% purity)
• Compressive strength – >2000 MPa
• Thermal conductivity – 25-35 W/m·K (high)
• Thermal expansion – 8 ×10⁻⁶/K
• Maximum use temperature – 1500-1700°C (in air)
• Electrical insulation – Excellent (10¹⁴-10¹⁵ Ω·cm)
• Color – White, pink, or brown (depending on purity)

When to choose alumina:

• Applications requiring high hardness and wear resistance
• Electrical insulation components
• High-temperature applications
• Cost-sensitive applications
• Components requiring high thermal conductivity
• Corrosion-resistant parts in chemical environments

Typical applications:

• Substrates and insulators for electronics
• Seal rings and bearings
• Nozzles and orifices
• Thermocouple protection tubes
• Grinding media and linings
• Wear plates and liners

📊 2. Comparative Analysis: Zirconia vs. Alumina

Property	Zirconia (Y-TZP)	Alumina (99.5%)	Winner
Hardness (Vickers)	11-12 GPa	15-18 GPa	Alumina
Fracture Toughness	6-10 MPa·m¹/²	3-5 MPa·m¹/²	Zirconia
Flexural Strength	900-1200 MPa	300-500 MPa	Zirconia
Thermal Conductivity	2-3 W/m·K	25-35 W/m·K	Alumina
Thermal Expansion	10-11 ×10⁻⁶/K	8 ×10⁻⁶/K	Matches metals
Maximum Temperature	1000°C	1500-1700°C	Alumina
Electrical Insulation	Good	Excellent	Alumina
Wear Resistance	Excellent	Excellent	Tie
Chemical Resistance	Excellent	Excellent	Tie
Biocompatibility	Excellent	Good	Zirconia
Relative Cost	High ($$$)	Moderate ($$)	Alumina

🔧 3. Special Material Variations

✅ Black Zirconia

Black zirconia is a variation of Y-TZP with added colorants (typically cobalt or iron oxides) that provide:

• Aesthetic black color – Ideal for consumer electronics and visible components
• Same mechanical properties – Retains all the advantages of standard zirconia
• Applications – Watch cases, phone back panels, decorative components

✅ High-Purity Alumina

Alumina is available in various purity grades, typically 96%, 99.5%, and 99.9%:

• 96% alumina – Most economical, good for general applications
• 99.5% alumina – Higher purity, better electrical insulation, finer grain structure
• 99.9% alumina – Highest purity, best for demanding applications

📏 4. Critical Specifications

Parameter	Typical Capability	Importance
Dimensional Tolerance	±0.01mm to ±0.05mm	Critical for precision fits
Surface Roughness (Ra)	0.1 – 0.8 μm	Affects friction and sealing
Flatness	0.003mm achievable	Critical for sealing surfaces
Minimum Hole Diameter	0.1mm (drilled), 0.04mm (laser)	Important for microfluidics
Wall Thickness	0.2mm minimum	Depends on component size

📊 5. Quick Selection Guide

Application	Material Recommendation	Key Considerations
High-toughness components (pistons, plungers)	Zirconia	Superior toughness prevents cracking
Electrical insulators	Alumina	Excellent dielectric properties
Wear parts in abrasive environments	Either	Both offer excellent wear resistance
High-temperature applications (>1000°C)	Alumina	Higher maximum use temperature
Medical devices (biocompatible)	Zirconia	Proven biocompatibility
Components requiring metal-like expansion	Zirconia	Thermal expansion matches metals
Cost-sensitive applications	Alumina	More economical
Black components (aesthetic)	Black Zirconia	Same properties, black color
Thin-walled complex geometries	Zirconia	Higher strength allows thinner sections

⚠️ Important Notice

These products are precision mechanical components for industrial, laboratory, and instrumentation applications. Components intended for medical or diagnostic use are for research use only (RUO) unless otherwise validated by the customer. Not for clinical use without appropriate regulatory approval.

❌ Common Mistakes When Choosing Ceramic Materials

• Choosing based on hardness alone – Alumina is harder, but zirconia is tougher. Consider the full property set.
• Ignoring thermal expansion – Mismatched expansion can cause stress and failure when joining to metals.
• Overlooking electrical properties – Alumina is an excellent insulator; zirconia may be less so.
• Not considering cost – Zirconia can be 2-3× more expensive than alumina.
• Assuming all grades are the same – Purity and processing significantly affect properties.
• Designing for metals, not ceramics – Ceramics are brittle; designs should avoid stress concentrators.

✅ Why Choose Meticulab for Precision Ceramic Components?

At Meticulab, we supply high-quality precision ceramic components for industrial, medical, and instrumentation applications:

• Multiple material options – Zirconia (Y-TZP), alumina (96-99.9%), black zirconia
• Wide range of components – Rods, pins, bushings, nozzles, substrates, custom parts
• High-precision machining – Tolerances down to ±0.001mm
• Excellent surface finish – Ra 0.1 μm achievable
• Custom manufacturing – OEM/ODM to your drawings and specifications
• Low MOQ – 5–10 pieces available for testing and evaluation
• Fast dispatch from Asia – In-stock items ship within 1-3 days

Explore our product pages:

• Specialty Ceramic Parts – Electrical Insulation, Thermal Resistance
• Medical-Grade Zirconia Ceramic Components
• High-Performance Precision Ceramic Components

❓ Frequently Asked Questions

Q: Which is harder, zirconia or alumina?
A: Alumina is harder (15-18 GPa vs 11-12 GPa Vickers). However, zirconia is much tougher, making it more resistant to cracking.

Q: Can zirconia and alumina be used interchangeably?
A: Not always. They have different properties. Zirconia excels in toughness and strength; alumina in hardness, thermal conductivity, and electrical insulation.

Q: What is black zirconia used for?
A: Black zirconia has the same mechanical properties as white zirconia but with an aesthetic black color. It's popular in consumer electronics, watches, and visible components.

Q: What is the minimum order quantity for custom ceramic parts?
A: For prototypes, MOQ can be as low as 5–10 pieces depending on complexity. Production MOQs vary by size and quantity.

Q: What is the typical delivery time?
A: In-stock items ship within 1-3 days. Custom prototypes typically take 2-4 weeks from drawing approval.
