Cryogenic Storage Tubes: Internal vs. External Thread – Which Is Safer for Your Samples?

Cryogenic storage tubes (cryovials) are essential for preserving biological samples, cells, and reagents at ultra-low temperatures. Choosing the right tube—particularly the thread type—can mean the difference between sample integrity and catastrophic loss.

🔬 1. Internal Thread vs. External Thread Cryovials

✅ Internal Thread Cryovials

When to use: Liquid nitrogen storage, long-term biobanking, precious samples, automated storage systems.

Advantages: Superior contamination protection, better seal integrity, ideal for liquid nitrogen vapor phase storage.

Disadvantages: Slightly more expensive, may require two hands to open/close.

✅ External Thread Cryovials

When to use: Mechanical freezers (-20°C to -80°C), routine sample storage, high-throughput manual handling.

Advantages: More economical, easier one-handed operation.

Disadvantages: Threads exposed to contaminants, not recommended for liquid nitrogen storage.

📊 2. Standard Cryovials vs. 2D Barcoded Tubes

Feature	Standard Cryovials	2D Barcoded Tubes
Sample Identification	Hand-written labels or adhesive stickers	Laser-etched 2D barcode + linear barcode
Automation Compatibility	Limited	ANSI/SLAS standard footprint
Error Rate	Higher (manual labeling errors)	Near-zero with automated scanning
Durability	Labels may fall off at low temperatures	Permanent laser etching, solvent-resistant
Ideal For	Routine lab use	Biobanks, clinical trials, large-scale studies

🧊 3. Liquid Nitrogen Storage Safety

Never immerse cryovials directly in liquid nitrogen. Always store in the vapor phase only. Use internal thread tubes for added security.

📏 4. Self-Standing vs. Round-Bottom Tubes

• Self-standing tubes – Stand upright on the bench, ideal for benchtop workflows.
• Round-bottom tubes – Require racks, better for centrifugation, more economical.

📊 Quick Selection Guide

Application	Thread Type	Volume	Special Features
Liquid nitrogen storage (vapor phase)	Internal thread	1.0–2.0 ml	O-ring seal, self-standing
Mechanical freezer (-80°C)	External thread	1.5–2.0 ml	Self-standing or round-bottom
Biobanking / Automated systems	Internal thread	1.0–2.0 ml	2D barcoded, self-standing
Cell culture storage	External thread	1.5–2.0 ml	Self-standing
Large volume storage	External thread	5.0 ml	Self-standing

❌ Common Mistakes

• Immersing tubes in liquid nitrogen – Risk of explosion; always use vapor phase.
• Using external thread tubes for liquid nitrogen storage – Higher risk of contamination and nitrogen ingress.
• Hand-written labels at -80°C – Labels may fall off; use cryo-compatible labels or 2D barcoded tubes.

✅ Why Choose Meticulab for Cryogenic Storage?

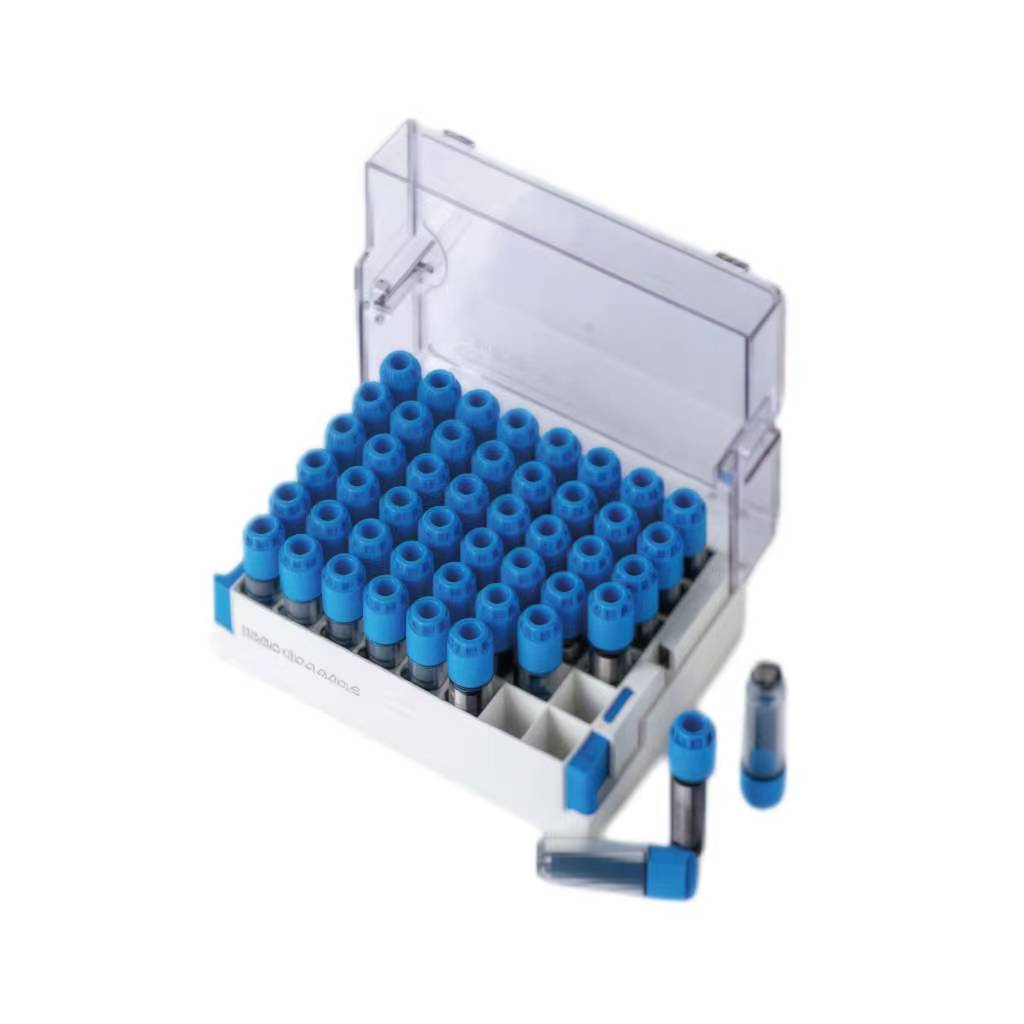

• Cryogenic vials – 0.5ml to 5.0ml, internal and external thread options
• 2D barcoded tubes – Laser-etched codes for automated sample tracking
• Certified clean – DNase/RNase free, non-pyrogenic, endotoxin <0.005 EU/mL
• Leak-proof – 98kPa tested, meets IATA PI650 standards
• Fast dispatch from Asia – In-stock items ship within 1-3 days
